motion+ product specifications

Overview

motion+ equipment is a complete range of play activities that move, including swinging, rocking, twisting, bouncing and more, and provides that action packed fun that kids love!

Swing Frame Uprights

• Metal A Frame Swing Steel Option: 75 x 75 x 3.0mm galvanised steel SHS with powder coat finish.

or:

• Metal A Frame Swing Aluminium Option: 75 x 75 x 5.0mm aluminium SHS with powder coat finish.

• Single Post & 5 Way Swings: 100 x 100 x 4.0mm galvanised steel SHS with powder coat finish.

• Timber A Frame Swings: 125 x 125mm sawn White Cypress with all corners fully radiused.

• 200 x 200 Swings: 200 x 200mm sawn White Cypress with all corners fully radiused.

Swing Top Bars

Fabricated from galvanised steel with powder coat finish.

Swing Bearings

Heavy duty integrated bearing hub with self-lubricating bush.

Swings Attachments

Moulded rubber with steel reinforcing.

Swing Chains

6mm Stainless Steel chain with cast Stainless finger entrapment free connectors.

Gyro Swings & Flyways

Fabricated from Grade 350 and 450 steel as appropriate with zinc rich powder coat primer base layer and powder coat finish.

Gyro Pivots

Heavy duty, low maintenance pivot – Allows movement in all directions.

Flayway Trollies

Trolley with integrated brake – With removable side panel for easy maintenance.

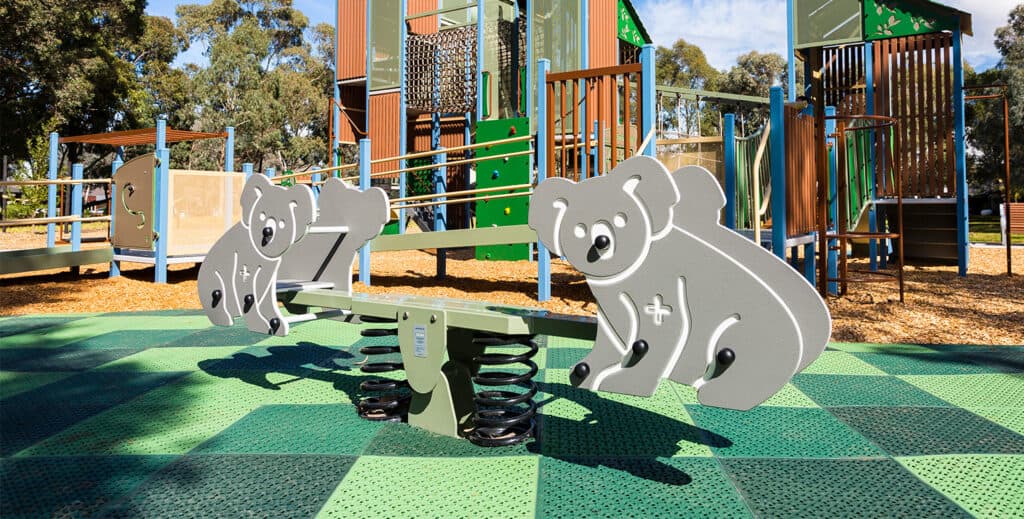

Rocker Bodies & Carousel Floors

Engraved 3 ply HDPE plastic sheet.

Rocker Springs

Precision engineered steel spring with spacers and end plates to eliminate finger entrapments.

Carousel Bearings

Heavy duty, low maintenance slew bearing.

Trampoline Mats

UV stabilised slip resistant injection moulded nylon tile surface with heavy duty galvanised steel springs.

Framework

Fabricated from galvanised steel with powder coat finish.

Ropework

Synthetic strands braided over a galvanised steel wire core.

Hardware

• Galvanised Option:  Vandal resistant with galvanised/class 3 finish.

or available for selected main fasteners:

• Stainless Steel Option: Vandal resistant and 316 Stainless Steel construction.

Corrosion Protection

• Primed Welds Option: Zinc rich powder coat primer applied to all welds.

or:

• Full Primer Coat Option: Zinc rich powder coat primer base layer applied to all galvanised steel components.

Footings

Concrete, size and shape fully engineered as appropriate.
