Overview

The following are the technical specifications for the symmetry+ timber playground equipment product range.

symmetry+ specifications

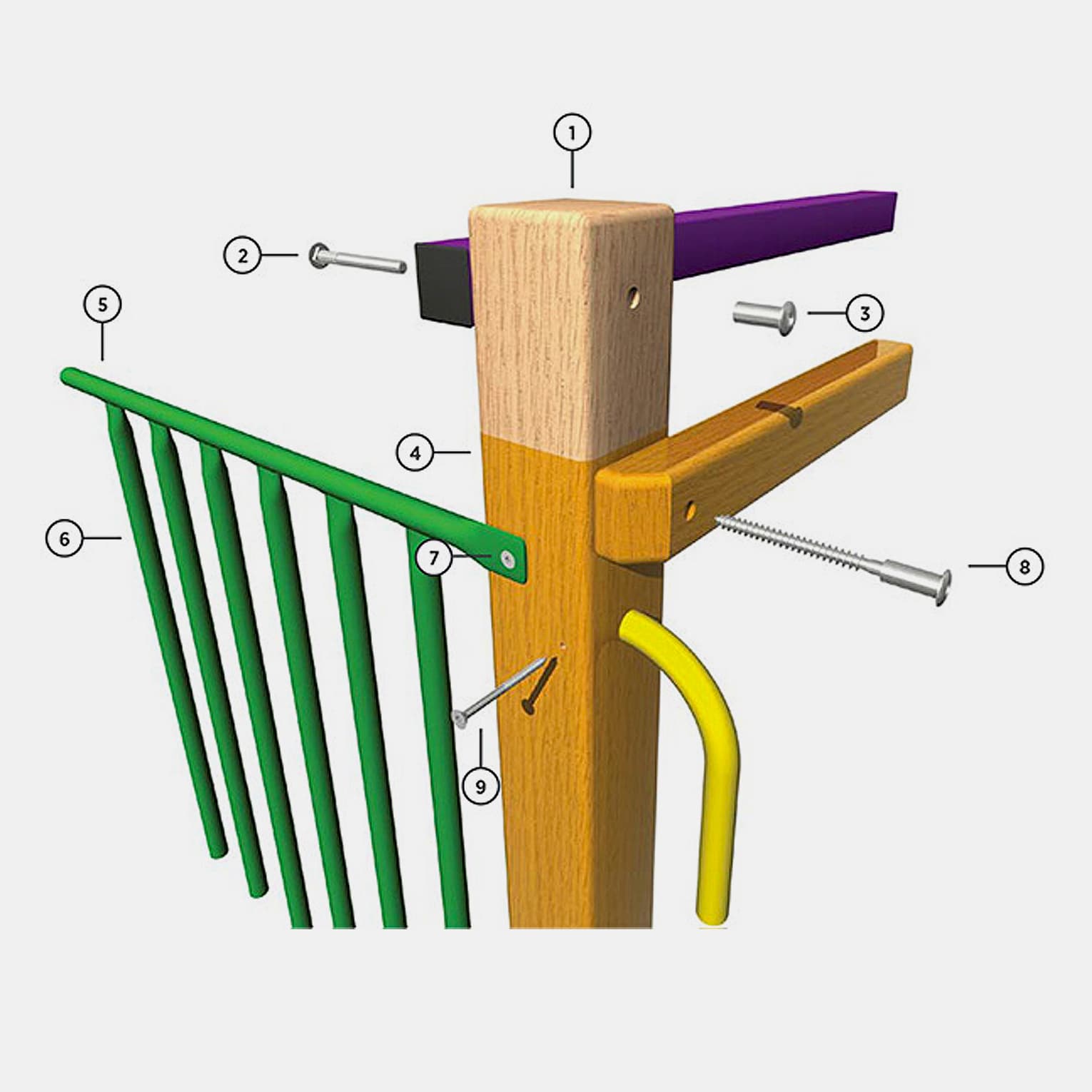

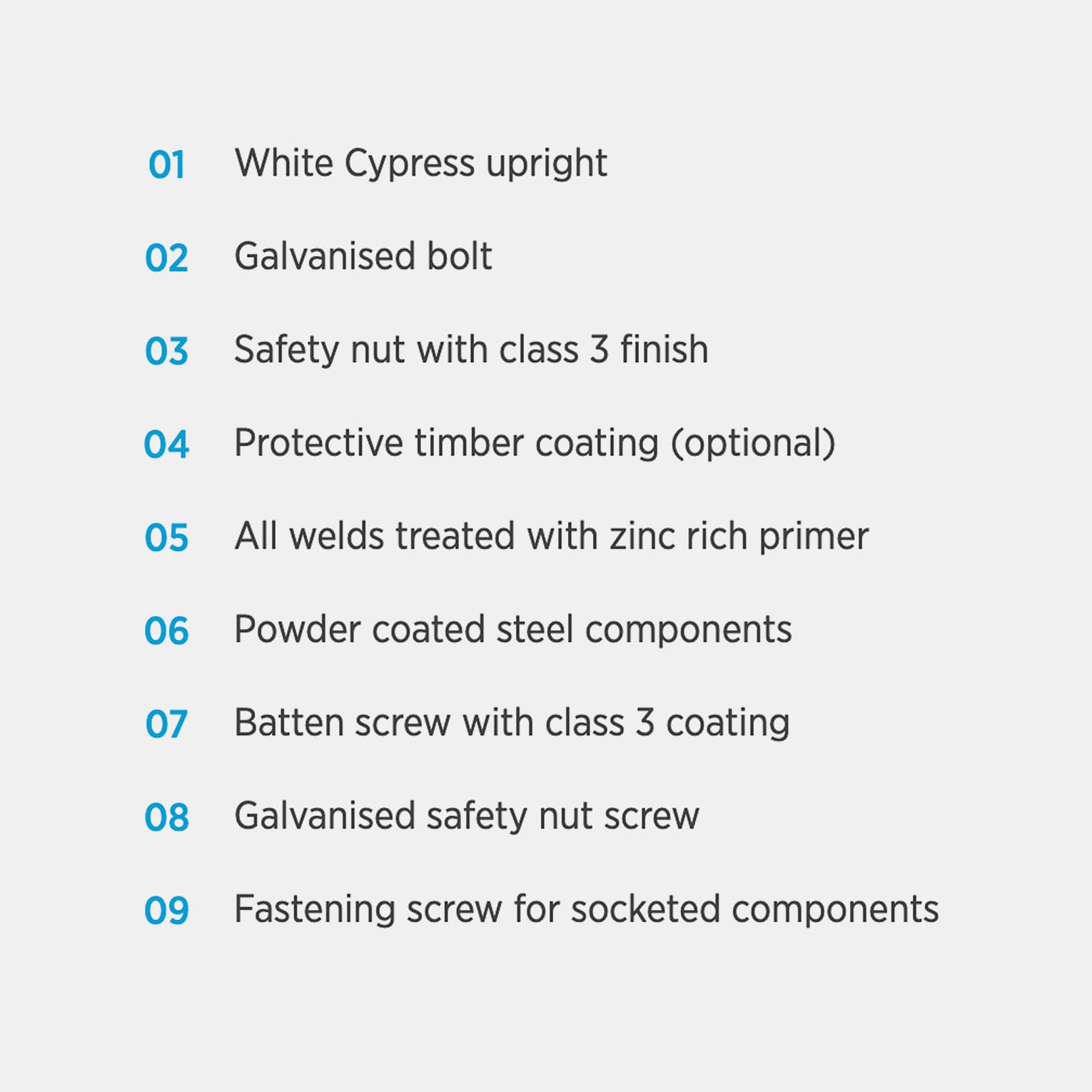

Main Uprights
125 x 125mm sawn White Cypress posts with all corners fully radiused.

Platform Decking
120 x 35mm (nominal) White Cypress, sawn finish, corners radiused and fully screwed.

Platform Bearers
125 x 60mm sawn White Cypress with corners radiused.

Timber Finish
Natural White Cypress or ‘Quantum Timbre Plus’ coating available for visual enhancement.

Roofs
Powder coated galvanised sheet steel, corrugated steel sheeting, HDPE plastic panels or rotomoulded plastic as specified.

Safety Railing
Guardrail panels or safety rails as required.
Powder coated galvanised steel tube, sawn White Cypress or HDPE plastic panels as specified.

Handgrips
27mm O/D galvanised steel tube with powder coat finish.
Supplied at climbing access points as appropriate.
Access ladders include 27mm O/D handgrip integrated in ladder side.

Handrails
34mm O/D galvanised steel tube with powder coat finish.

Play Components
Fabricated from galvanised steel, welds treated with zinc rich primer – powder coat finish.

Slides
Heavy duty reinforced fibreglass, rotomoulded plastic or stainless steel as specified.

Tunnels
Powder coated galvanised steel tube with end panels.

Activity Panels
Rotomoulded plastic beads or HDPE plastic sheet panels as appropriate.

Climbing Ropes
Synthetic strands braided over a galvanised steel wire core.

Hardware
Cup head bolts, recessed safety nuts, screws – vandal resistant with galvanised/class 3 finish.

Footings
Concrete to a minimum depth of 500mm with earth hard packed to mouth of hole.

symmetry+ junior specifications

Main Uprights
125 x 125mm sawn White Cypress posts with all corners fully radiused.

Platform Decking
120 x 35mm (nominal) White Cypress, sawn finish, corners radiused and fully screwed.

Platform Bearers
125 x 60mm sawn White Cypress with corners radiused.

Timber Finish
Natural White Cypress or ‘Quantum Timbre Plus’ coating available for visual enhancement.

Roofs
Powder coated galvanised sheet steel, corrugated steel sheeting or rotomoulded plastic as specified.

Safety Railing
900mm high guardrail panels on platforms over 500mm.
Powder coated galvanised steel tube, sawn White Cypress or HDPE plastic panels as specified.

Handgrips
27mm O/D galvanised steel tube with powder coat finish.
Supplied at climbing access points as appropriate.
Access ladders include 27mm O/D handgrip integrated in ladder side.

Handrails
34mm O/D galvanised steel tube with powder coat finish.

Play Components
Fabricated from galvanised steel, welds treated with zinc rich primer – powder coat finish.

Slides
Heavy duty reinforced fibreglass, rotomoulded plastic or stainless steel as specified.

Tunnels
Powder coated galvanised steel tube with end panels.

Activity Panels
Rotomoulded plastic beads or HDPE plastic sheet panels as appropriate.

Climbing Ropes
Synthetic strands braided over a galvanised steel wire core.

Hardware
Cup head bolts, recessed safety nuts, screws – vandal resistant with galvanised/class 3 finish.

Footings
Concrete to a minimum depth of 500mm with earth hard packed to mouth of hole.
